Features

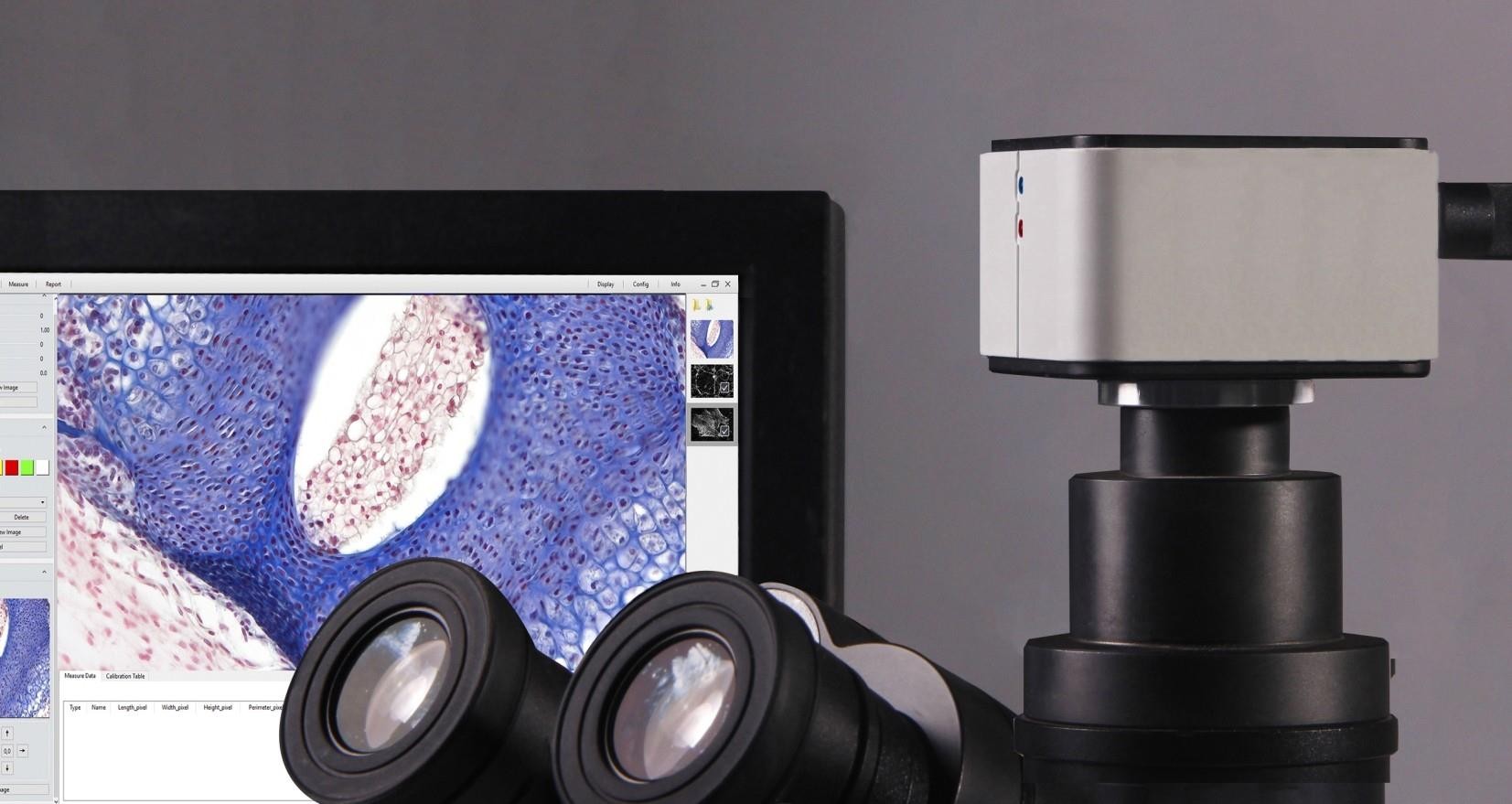

1. Revolutionary industrial and biological microscope camera
2. Two Core Technology: Real-time image stitching & depth-of- field fusion
3. USB3.0 interface, Support OEM/ODM development
Revolutionary PC Computing Imaging Software Capture V2.0
Unique from the cumbersome process of traditional technology to obtain images after processing, the revolutionary computing imaging software Capture V2.0 provides real-time image stitching and real-time depth of field fusion. This can automatically complete the image while the operator moves the stage - productivity at its best.
Real-time Image Stitching
Within a few seconds of moving the stage, Capture V2.0 can complete the whole process of panoramic stitching in real time, and it can be accurately and quickly stitched under different magnifications and arbitrary angles.
Sample: Mouse ovary section
Magnification: 10X
After Before
Real-time Depth-of-field Fusion
Rotating the focus ring to image different depth of field points, Capture V2.0 can realize the depth of field
expansion and full-length details at a glance, no more blurred images!

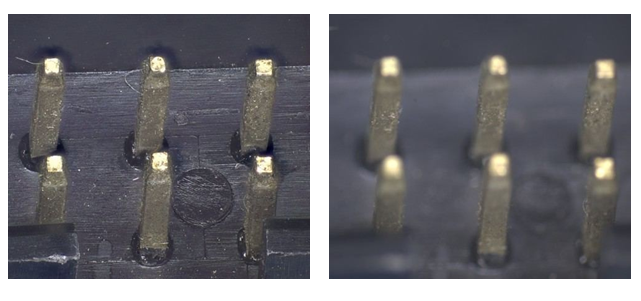

Sample: Circuit board pin Magnification: 4.5X
After Before
Minimalist Operation Mode, Work More Efficiently and Effortlessly
Fast, efficient and worry-free is the core design concept of Capture V2.0 software. It adopts a new image "shooting-processing-measurement-reporting" function, modular design, and integrates various intelligent image processing algorithms. It is dedicated to providing users with more simple operation modes and improve work efficiency in all circumstances.

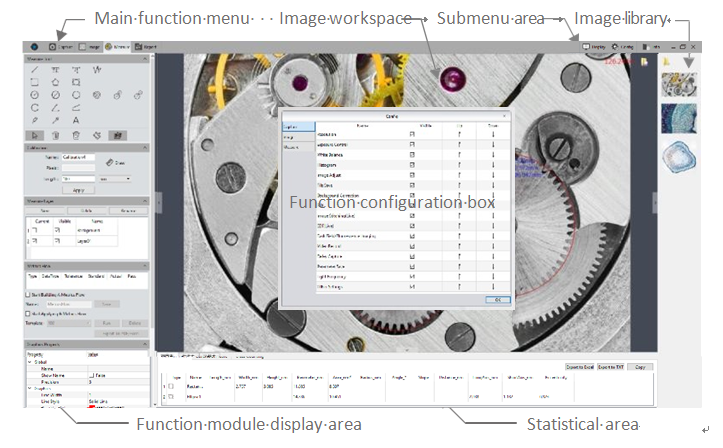

Capture V2.0
① Modular function configuration
Users can adjust all functions including exposure, processing and measurement according to different applications, and customize the exclusive working interface!

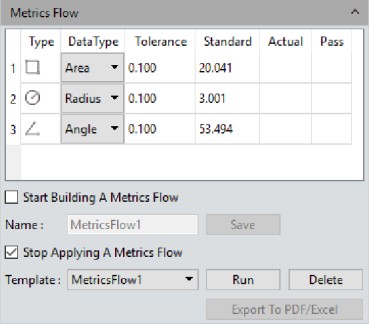

② Efficient measurement flow
The measurement stream can be used to record repetitive measurement steps, making it easier for users to perform measurement tasks faster.

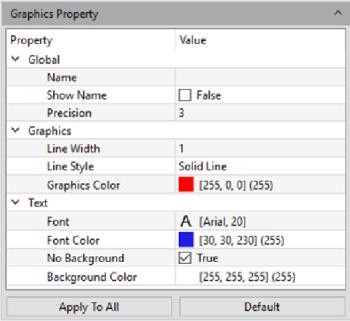

③ Visual property editing
During the measurement process, the user can modify the properties of lines, fonts, colors, etc. very intuitively.

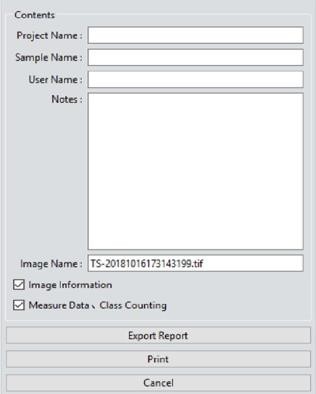

④ Create an experiment report
Support for project information input, then automatically generate experimental reports containing image, measurement and counting information.
Main Technical Parameters
Product Model | BUC5H-500C | BUC5H-2000C | BUC5H-600C |
Shutter Mode | Global | Rolling | Rolling |
Sensor Model | IMX264LQR-C | IMX183CQJ-J | IMX178LQJ-C |
Sensor Type | CMOS | CMOS | CMOS |
Sensor Size | 2/3" | 1" | 1/1.8" |
Color/Mono | Color | Color | Color |
Pixel Size | 3.45x3.45(μm) | 2.4x2.4(μm) | 2.4x2.4(μm) |
Resolution | 2448(H)x2048(V) | 5472(H)x3648(V) | 3072(H)x2048(V) |
Frame Rate | 35fps(2448x2048) 35fps(1224x1024 2x2bin) 88fps(1224x1024) | 15fps(5472x3648) 53fps(2736x1824 2x2bin) 67fps(1824x1216 3x3bin) | 41fps(3072x2048) 41fps(1536x1024 2x2bin) |
Picture Format | JPG/PNG/TIFF | ||
Color Temperature | 2000-15000L | ||
Interface | Data Interface: USB3.0, Optical Interface: Standard C Mount | ||
Multiple Cameras | Supports 4 Cameras Simultaneously in SDK | ||
PC Software | Capture V2.0 | ||
Operating System | Windows is supported and Linux/Mac is under development | ||
PC Configuration | CPU: Intel Core i5 or better(Quad or more Core) , RAM: 8G or more OS:Windows 7/8/10 64bit | ||
Capture V2.0 Feature Function
Modular function configuration
Intelligent 12-bit ISP color reproduction
Real-time depth of field fusion (Option)
Real-time image stitching (Option)
Real-time fluorescence image synthesis and editing
HDR image synthesis
Micro-imaging-based intelligent automatic exposure
Intelligent flat field correction based on dynamic calculation
Supports single shot, delayed camera
Automatic video and delay video generation
Output format selection
User parameter group save and load
Dynamic static measurement
Layered measurement
Customize measuring gauges, layers, precision
Customize image naming, style, save location
Implements drawing: points, lines, rectangles, polygons, circles, arcs, angles
Data export as TXT or Excel
Report generation and printing
Applications
